540" Cruiser 620hp

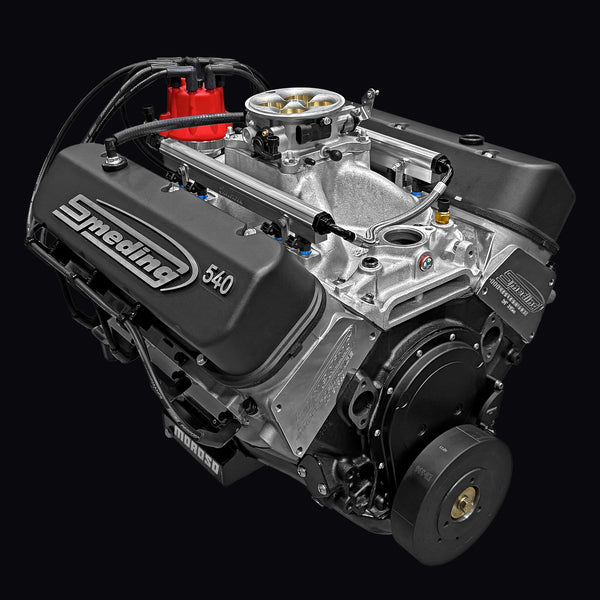

If you are a big-block sort of guy, then you are really going to like our smallest rat motor; 540" Cruiser. Using a proven combination of top-quality parts with meticulous machining and assembly, then dyno tuning and testing each one, this engine puts out enough horsepower and torque to melt the pavement with the slightest tickle of the throttle.
Like all Smeding Performance crate engines, the 540" Cruiser runs on premium pump gas and works with either a stick or automatic transmission, even with overdrive. This engine will fit where any earlier model standard-deck (9.800”) big-block fits, so things like headers and other accessories will bolt right up.

Block: GM Bowtie, 4.500" Bore, 9.8" Deck Height, 1pc Rear Main Seal
Crankshaft: Smeding 4340 Forged Steel, Internal Balance, 4.250" Stroke
Rods: Smeding 4340 Forged Steel H-beam with 7/16" Bolts, 6.385" Length
Pistons: Custom Forged Aluminum, 9cc Dome, 10.0:1 Compression
Rings: Plasma-Moly Top, Low Fiction Oil, 1/16” x 1/16” x 3/16”
Camshaft: Smeding Hydraulic Roller, .614”/.614” Lift, 241°/249° Duration @ .050”
Rocker Arms: Scorpion 1.7 Ratio, 7/16" Stud, Full-Roller
Intake: Edelbrock Performer RPM Air-Gap Dual Plane
Cylinder Heads: Smeding 360cc Intake Port, 2.30" / 1.88" Valves, 120cc Chambers
Warranty: 3 Year, Unlimited Miles

Torque Converter: 2,200-2,600rpm Stall Recommended

All of our engine packages are extremely flexible and can be customized! If there is an option you would like and do not see, please call us at 210-446-0960.
